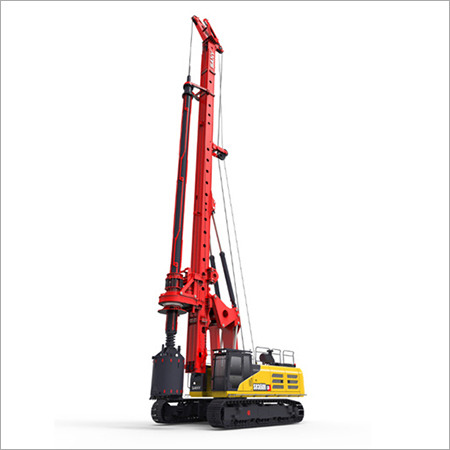

285 kN.m Torque Piling Rig

285 kN.m Torque Piling Rig
285 kN.m Torque Piling Rig
Product Code : SR285RC8
Brand Name : SANY
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

285 kN.m Torque Piling Rig

Superior Performance

New Generation Rotary Drive

The piling rig SR285RC8 adopts multi-gear control and self-adaption technology to realize the perfect match of crowd force and torque, the cutting efficiency can be increased by 15%.

Construction Control Management System

Featured with leading active prevention technologies such as operability, fault alarm, monitoring and information recording/transmission.

Excellent Performance

The first chassis equipped with Kawasaki load control system is highly efficient and energy saving; Main winch confluence technology is adopted and the maximum speed reaches 70m/min.

Strong Rock Drilling Ability

Rotary drive of 260KN crowd force and 280KN•m torque rank the first in the industry; The upgraded and strengthened Kelly bar can realize the pile depth of 61m (interlocking bar) and 94m (friction bar).

Safety and Reliability

Reliable Structure

The light-weight pulley yoke, strengthened mast, new mast pivot and crowd sledge, box-type connecting board and lengthened drive bar ensure the high quality of structural parts.

Stable Chassis

The new generation of chassis features with heavy weight; low gravity center and the extended width of 4740mm enable the piling rig SR285RC8 high stability.

Safety Design

A series of safety design ensure the safety of operator and other personnel such as 360° full vision monitoring system, sunroof with large view, alarm on monitor, guardrail and emergency exit.

Easy-to-Service

Intelligent Service

The integrated electric cabinet realizes intelligent troubleshooting, which facilitates servicing.

Spacious Design

The design of divided access door provides enough space for maintenance and the layout of hydraulic system facilitates servicing.

Overall height

24425mm

Operating weight

98t

Max. pile diameter

2300mm

Max. pile depth (friction bar)

88m

Max. pile depth (interlocking bar)

57m

Max. output torque

285kN.m

Rotation speed

5~24rpm

Crowd force

260kN

Line pull

260kN

Stroke

6000mm

Main winch - line pull

315kN

Main winch - rope diameter

36mm

Main winch - max. line speed

60m/min

Auxiliary winch - line pull

90kN

Auxiliary winch - rope diameter

20mm

Auxiliary winch - max. line speed

70m/min

Forward/Backward

Lateral

±4°

Chassis model

SY285R

Chassis length

7460mm

Extended width

4700mm

Track shoe width

800mm

Swing radius (backside)

4530mm

Transport width

3524mm

Transport height

3721mm

Base engine Mitsubishi

6D24-TLC1B

Engine power

250kW@2000rpm

Emission standard

EU stage II/EPA Tier 2

Trade Information
  • Payment Terms
  • Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union
  • Delivery Time
  • 7-20 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • CE, ISO, Gost, EPA(USA), CCC
