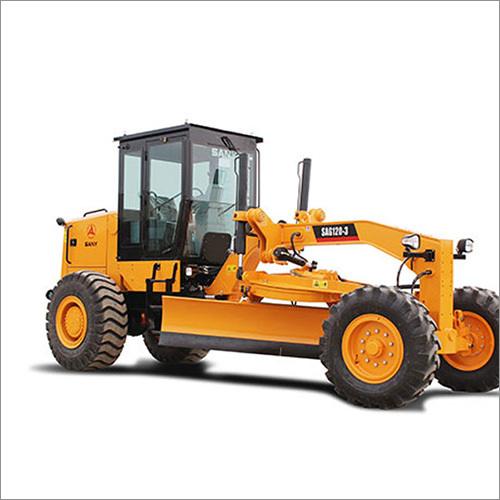

120 HP Motor Grader

120 HP Motor Grader
120 HP Motor Grader
Product Code : SAG120-3
Brand Name : SANY
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

120 HP Motor Grader

Powerful Transmission

  • The 120 HP motor grader combines advantages of both hydraulic and mechanical transmission
  • Rear axle applies no-spin differential lock technology, enhancing synchronization
  • Large torque rotary motor and worm-gear case with overload protection provides the blade maximum power in ground leveling

Smart Operations

  • Automatic gears shift, easy to operate and highly efficient
  • Speed range and initial gear can be set by operator, making operating extremely easy
  • Intelligent reversing technology reduces the time to change direction

Safety and Comfort

  • The 120 HP motor grader features step-less speed change, low gear-shifting impact and comfortable operation
  • Joystick requires less exertion of physical force and less distance, which is able to realize synchronous actions
  • Fail proof triple braking system (travel braking, park braking and hydraulic system assistance braking) ensures safety and reliability

Convenient Maintenance

  • Wider cabin doors on both sides give way to more accessible maintenance
  • Electronic devices and filters are centrally positioned for convenient maintenance

Engine manufacturer

Cummins

Rated power

93/2200 kW/rpm

Length-between front axle and rear axle

5000 mm

Tire front

13.0-24 (16PR) / rear 20.5-25 (16PR)

Hydraulic system – tank

150 L

Fuel capacity

150 L

Engine model

4BTAA3.9-C125

Emissions

Tier 2

Max.torque/speed

480 N.m

Forward/Reverse gears

5 / 5

Speed forward

4/7/12/20/30 km/h

Speed reverse

4/7/12/20/30 km/h

Max. front wheel turning angle

45° / 45°

Max.front wheel tilt angle

17° / 17°

Max.oscillation angle of front axle

22° / 22°

Max.oscillation angle of tandem box

15° / 15°

Min.turning radius

6.2 mm

Moldboard width×Arc radius

3050 mm

Max.blade position angle

56°

Blade==Max.lift above ground

460 mm

Circle rotation

360°

Operating weight (Standard)

8390 kg

Dimensions (Standard)

6810×2280×3310 mm

Trade Information
  • Payment Terms
  • Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union
  • Delivery Time
  • 7-20 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • CE, ISO, Gost, EPA(USA), CCC
